ZM-WSK-T Temperature And Humidity Controller

Print current page

Product Description

  • brief introduction
  • technical parameter
  • Product size

Application

Automatic temperature and humidity controller is widely used in various electrical cabinet automatic temperature control, dehumidification of special automation instruments, the temperature is too high, too low caused by the shortened life of various components or due to excessive humidity caused by creepage, Flashover accidents and other failures can effectively monitor and prevent.


Function

1.High performance dielectric polymer humidity sensor, stable performance and fast dehumidification, dew point in the condensate state has a good switch characteristics, the use of AC power supply, the sensor will not produce polarization and lead to performance degradation or even complete failure.


2.High-performance NTC temperature sensor, high sensitivity, good stability, small size, high precision, short response time, good interchangeability.


3.The use of integrated circuits, printed circuit boards using computer CAD design, and all anti-fog treatment, long-term high temperature and humidity environment.

Main Techincal Data

1.Relay contact closed when humidity ≥ 88% RH, relay contact open at ≤ 78% RH, control error ≤ ± 5RH (or specified by the user);
2.Relay contact closed when temperature ≤5°C , relay contact disconnected when ≥13°C , control error ≤ ± 1 °C (or specified by the user);
3.Rated voltage: AC250V ± 10%
4.Contact capacity: AC250V 10A

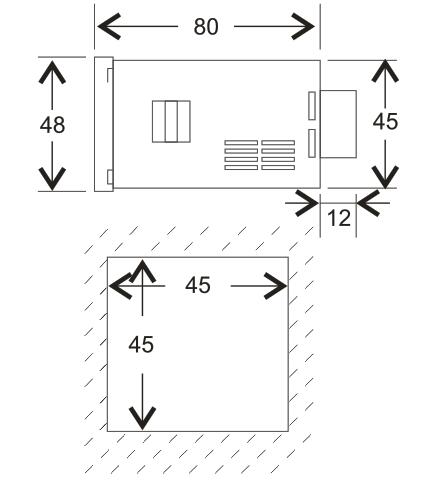

External And Installation Size
